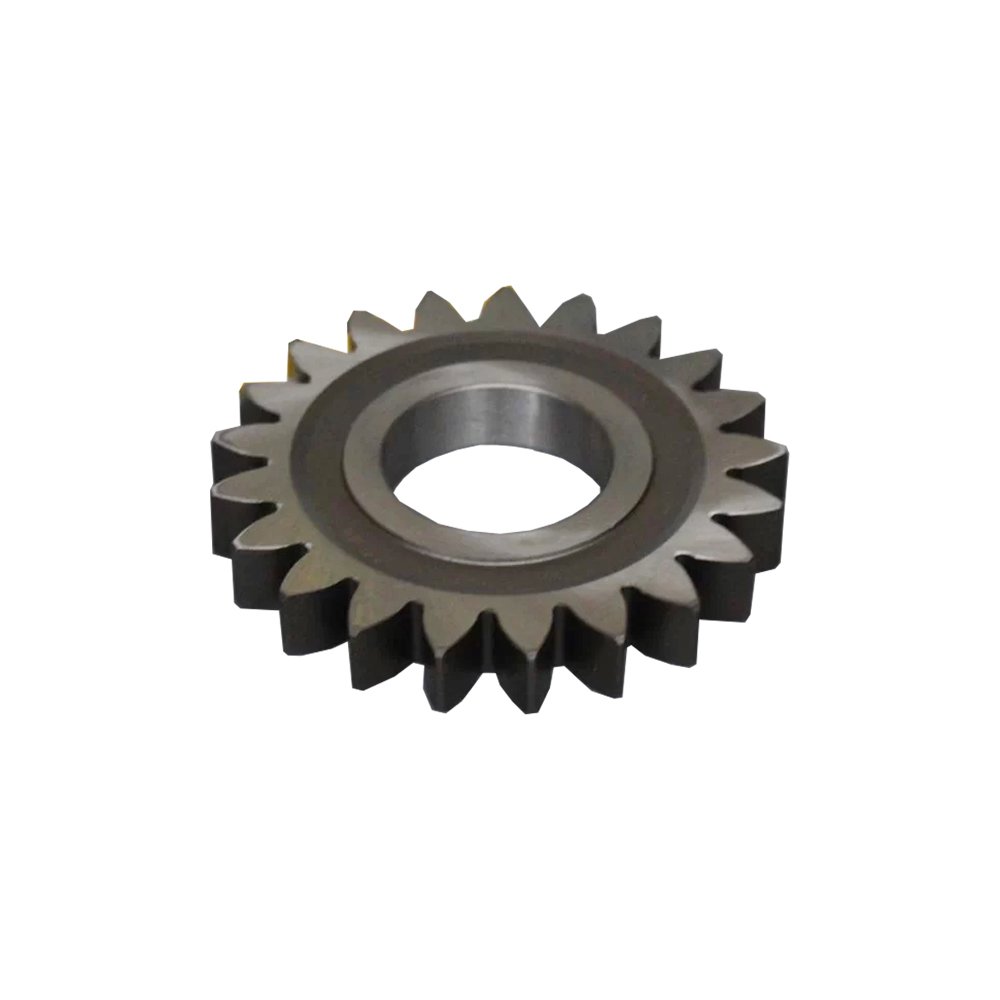

Final Drive Planetary Gear VOE14599948 Fit Volvo Excavator EC250D EC250E EC300D EC300E

Product Name: Planetary Gear Reference Part Number: VOE14599948 Compatible Machine: Volvo Excavator EC240C EC290B EC290C…Description: Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement. Pos. Part No Qty Parts name Comments VOE14599921 [1] Travel gearbox 1. VOE14599922 [1] Housing 2. VOE14599932 [1] Gear 3. SA14599923 [2] Bearing 4. VOE14599927 [1] Shim THICK = 0,6 MM 4. VOE14599928 [1] Shim THICK = 0,8 MM 4. VOE14599929 [1] Shim THICK =1,0 MM 4. VOE14599930 [1] Shim THICK = 0,7 MM 4. VOE14599931 [1] Shim THICK = 0,9 MM 4. VOE14607977 [1] Shim THICK = 1,1 MM 5. VOE14599926 [1] Retainer 6. VOE14599933 [1] Planet carrier 7. 14599934 [1] Carrier 8. VOE14566415 [4] Pin 9. VOE14599935 [4] Planetary Gear 10. VOE14566414 [8] Washer 11. SA9325-06012 [4] Spring pin 12. SA1036-00300 [1] Ring 13. VOE14566412 [4] Needle bearing 14. VOE983919 [16] Hex. socket screw 15. VOE14599938 [1] Gear 16. VOE14599939 [1] Planet carrier 17. VOE14599944 [3] Pin 18. 14599940 [1] Carrier 19. VOE14599941 [3] Planetary Gear 20. VOE14599943 [6] Washer 21. SA9325-06012 [3] Spring pin 22. VOE14599942 [3] Needle Bearing 23. VOE14566433 [1] Thrust washer 24. VOE14599945 [1] Gear 25. VOE14599946 [1] Planet carrier 26. 14599947 [1] Carrier 27. VOE14599948 [3] Planetary Gear 28. VOE14599950 [6] Washer 29. VOE14599951 [3] Pin 30. VOE951955 [3] Spring pin 31. VOE14599949 [3] Needle Bearing 32. VOE14569232 [1] Ring 33. VOE14566417 [1] Ring 34. VOE14599952 [1] Gear 35. VOE9541-01038 [1] Snap Ring 36. VOE14599953 [1] Cover 37. VOE982211 [18] Hexagon screw 38. SA9213-20000 [18] Spring washer 39. VOE14883847 [2] Plug 40. VOE990557 [2] O-ring 41. VOE9324-21617 [4] Pin 42. VOE14599925
